Ergonomic Handling

Gorbel Ergonomic Cranes

Gorbel ergonomic cranes offer ideal solutions for today's fast paced handling environment of lighter weight payloads.
  • Crane capacities of 150 to 4,000 pounds
  • Bridge spans up to 30 feet
  • Free standing or ceiling mounted
  • Steel or aluminum enclosed track
  • Light weight easy to move aluminum bridges
  • 5-year warranty
  • 5-day quick ship for standard systems
  • If it's late, we pay the freight
Download File

Ergonomic Bridge Cranes & Monorails

Gorbel's Ergonomic Overhead Cranes give you the handling equipment that you need to get the job done.

Gorbel's line of Bridge Crane products guarantees increased productivity with their ability to span up to 30 feet and lift capacities from 150 - 4000 lbs. Available in Free Standing, Ceiling Mounted, and Monorail styles. Seismic Zone IV applications also available.

Gorbel's line of Jib Cranes include Enclosed Track Work Station Jibs, Articulating Jibs and I-Beam Cranes.

Enclosed Track Work Station Jibs are ideal for supporting tool balancers, air balancers, hoists, and welding wire and can handle up to 200o rotation when wall or column mounted and up to 360o rotation when floor mounted. Available in Free Standing, Wall Cantilever, and Aluminum Tie Rod styles.

Articulating Jibs can position loads in places that cannot be reached with traditional jibs. They can move loads around corners, reach into machines or doorways, and swing under obstructions. Available in Free Standing, Ceiling Mounted, and Wall/Column Mounted styles.

I-Beam Cranes are versatile enough to perform a wide variety of local handling and spotting functions, and economical enough to be dedicated to individual work stations for maximum effectiveness. Available in Free Standing, Wall Cantilever, Wall Bracket, Mast Type, and Motorized styles.

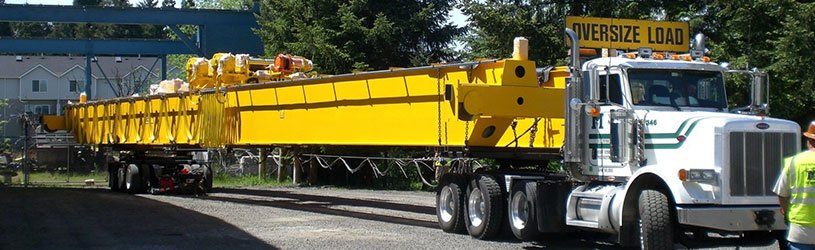

Yellow Long Truck — Tigard, OR — Milwaukee Crane

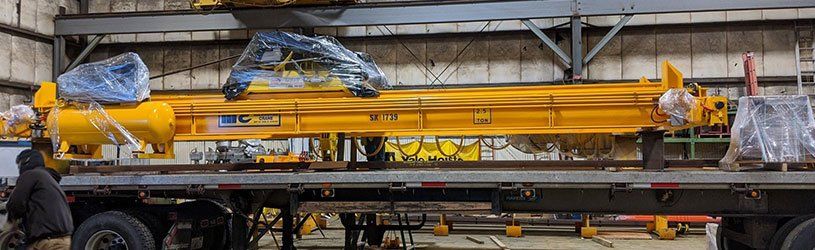

Orange Long Truck — Tigard, OR — Milwaukee Crane
Gorbel's Gantry Cranes provide an economical way to lift materials anywhere in a facility. The heavy-duty end frame design with square tubing uprights, knee braces and channel base provide stable lifting and movement. Gantry Cranes come in Fixed Height Steel and Adjustable Steel.
Why Choose Gorbel Gantry Cranes:
  • Industry's Best Warranty - 5 Years on manual and motorized products
  • "If it's late, we pay the freight"
  • 5 Day Quick Ship, 2- or 3-Day Quick Ship (premium service)
  • Multiple shipping points - plants in NY and AL
  • Local Representation - serviced by a nationwide network of material handling specialists
  • Ease of movement - durable polyurethane casters provide low rolling resistance for easy movement
  • Safety - bolted beam to upright connection to ensure that beam doesn't dislodge
  • Ease of installation

Intelligent Ergonomic Lifting Devices from Gorbel G-Force

The Gorbel G-Force™ and Gorbel Easy Arm™ are part of a new family of Material Handling equipment known as Intelligent Assist Devices (IAD's).

The G-Force™ Intelligent Lifting Device uses patented technology and an industrial processor-controlled drive system to deliver unmatched lifting precision and speed.

The Easy Arm™ Intelligent Lfiting Arm uses Gorbel's patented G-Force ™ technology and an industrial processor-controlled drive system, integrated them into an ergonomic articulating jib design.

How G-Force Works

The G-Force enables operators to lift and maneuver naturally, as if the device were an extension of their own arm. The G-ForceTM will help improve productivity, reduce the cost of product damage, and minimize work related injuries.

The G-ForceTM is available in two series: the BXi series and the streamlined BX Series (lower cost alternative). Both series are available in 150# and 300# capacities. The G-Force is also available integrated with our Easy Arm articulating jib crane.
Features:
  • Pinpoint precision - speeds from 1 foot per minute (0.3 mpm) up to 275 fpm (83mpm)
  • Blazing speed - travels up to 4 times faster than traditional high-end lifting devices
  • Infinite speed control - ideal for applications that require high speed at some points in the cycle and slow, precise movements at other points
The G-ForceTM ILD gives the responsiveness and flexibility of a human operator plus the power of a machine. It incorporates a range of speeds, so it is perfect for quick, repetitive motions and slow, precise placements.

A new ergonomic lifting study shows that the G-Force outperforms other lifting devices in both high cycle and precision placement applications. View a PDF copy of the study.
Download File

Cynergy Ergonomics

Unified industries

Ingersoll Rand Zimmerman - Ergonomic Lifting & Handling Systems

“Engineered for the Interaction of Man and Machine”
Ingersoll Rand Zimmerman pioneered the development of pneumatic powered lifting and balancing equipment, making them the world leader in the manufacturing of ergonomic, in-process, manual assist, pick, and place systems.

The combination of IR Zimmerman’s 40 years of manufacturing excellence, ISO 9001 certification and 24-hour service network has created a unique ability to respond to your needs anywhere in the world with the highest quality material handling equipment available.

With a solid commitment to research and development, we have applied our expertise to introduce new products with technology that is state of the art and most sophisticated in the world. Our most recent innovations are the Intelift pneumatic balancers and intelligent handling devices.

For over 40 years, Ingersoll Rand Zimmerman have been serving the material handling needs of automotive, appliance, aerospace, converting, electronics, food, furniture, glass, packaging, printing, pharmaceutical, sheet metal, textile and warehousing industries worldwide.
